Fans & Assemblies

Penta Pack Series

    • FAN PACK ASSEMBLIES
    • PENTA 154
    • PENTA 172
    • PENTA 200
    • ECONOMY SERIES
    • Variable Speed Range (RPM)
    • 400-2,300
    • 400-2,300
    • 400-2,300
    • 400-2,300
    • Output Power Range (W)
    • 0 - 25w
    • 0 - 25w
    • 0 - 25w
    • 0 - 25w
    • Voltage/Frequency
    • 120/230-240; 50/60Hz
    • 120/230-240; 50/60Hz
    • 120/230-240; 50/60Hz
    • 120/230-240; 50/60Hz
    • Number of Speeds
    • 3
    • 3
    • 3
    • 3
    • Reversible
    • Yes
    • Yes
    • Yes
    • Yes
    • Customer Programmable
    • Yes
    • Yes
    • Yes
    • Yes
    • Available with
    • UNADA UC Series
    • UNADA UC Series
    • UNADA UC Series
    • UNADA UC Series
    • IP66/IP67 Ingress Protection
    • Yes
    • Yes
    • Yes
    • Yes
    • ATEX Compliance
    • Optional
    • Optional
    • Optional
    • Optional
    • Food Grade Materials
    • Optional
    • Optional
    • Optional
    • Optional
    • Fan Blade Diameter
    • 154 mm (6 inch)
    • 172 mm (7 inch)
    • 200 mm (8 inch)
    • 154-254 mm (6-12 inch)
    • Fan Blade Type
    • Plastic
    • Plastic
    • Plastic
    • Aluminum & Metal
    • Effciency
    • Very High
    • Very High
    • Very High
    • High
    • Noise
    • Very Low
    • Very Low
    • Very Low
    • Low

PENTA FANPACK SERIES

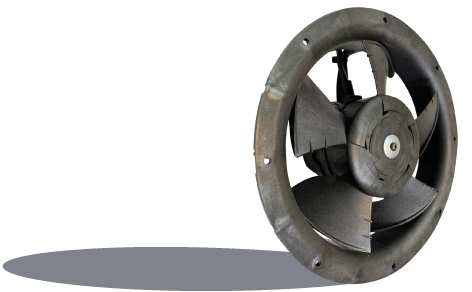

Penta 200 Fanpack

Specifications

Bottle Coolers | Display Cases Ventilation

Specifications

Rated voltage 100 - 240 Vac (+/-10%), 50/60Hz
Temperature range -40℃ to +50℃
Rated Current 0.25 amp @ 230VAC 50/60Hz / 0.42 amp @ 120VAC 50/60Hz
Absorbed powers 35W
Rated speed 400 to 2300rpm (+/-1%)
Speed selection 3 discrete programmable speeds.
Direction of rotation CCW, CW, reversible
Reverse speed Timed reverse programmable options.
Motor protection Electronically / Thermally Protected
Ground protection Double Insulation
Insulation class Class B
Bearing 608 sealed ball bearings
Approvals UL / TÜV / CE / RCM / CCC / ATEX*
Ingress protection IP65 / IP67*
*Option on request: Please discuss with our representative.

PENTA FANPACK SERIES

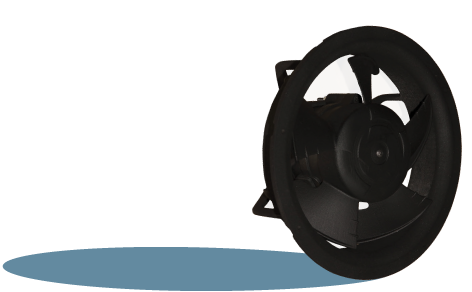

Penta 172 Fanpack

Specifications

EC FANPACK ASSEMBLY

Bottle Coolers | Display Cases Ventilation

Specifications

Rated voltage 100 - 240Vac (+/-10%), 50/60Hz
Temperature range -40℃ to +50℃
Rated Current 0.29 amp @ 100-240; 50/60Hz (90-253VAC)
Absorbed powers 30W
Rated speed 400 to 2300rpm (+/-1%)
Speed selection 3 discrete programmable speeds.
Direction of rotation CCW, CW, reversible
Reverse speed Timed reverse programmable options.
Motor protection Electronically / Thermally Protected
Ground protection Double Insulation
Insulation class Class B
Bearing 608 sealed ball bearings
Approvals UL / TÜV / CE / RCM / CCC / ATEX*
Ingress protection IP65 / IP67*
*Option on request: Please discuss with our representative.

PENTA FANPACK SERIES

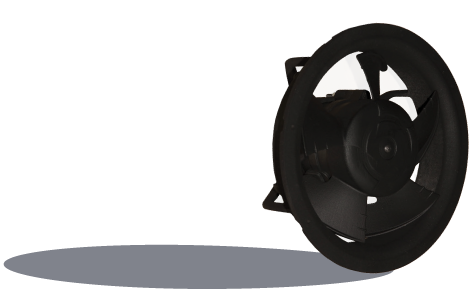

Penta 154 Fanpack

Specifications

EC FANPACK ASSEMBLY

Bottle Coolers | Display Cases Ventilation

Specifications

Rated voltage 100 - 240 Vac (+/-10%), 50/60Hz
Temperature range -40℃ to +50℃
Rated Current 0.29 amp @ 100-240; 50/60Hz (90-253VAC)
Absorbed powers 30W
Rated speed 400 to 2300rpm (+/-1%)
Speed selection 3 discrete programmable speeds.
Direction of rotation CCW, CW, reversible
Reverse speed Timed reverse programmable options.
Motor protection Electronically / Thermally Protected
Ground protection Double Insulation
Insulation class Class B
Bearing 608 sealed ball bearings
Approvals UL / TÜV / CE / RCM / CCC / ATEX*
Ingress protection IP65 / IP67*
*Option on request: Please discuss with our representative.

ECONOMY SERIES

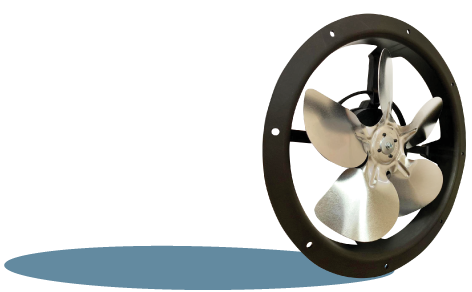

Economy Fanpack

Specifications

EC FANPACK ASSEMBLY

Bottle Coolers | Display Cases Ventilation

Specifications

Rated voltage 100 - 240Vac (+/-10%), 50/60Hz
Temperature range -40℃ to +50℃
Rated Current 0.25 amp @ 230VAC 50/60Hz / 0.42 amp @ 120VAC 50/60Hz
Absorbed powers 35W
Rated speed 400 to 2300rpm (+/-1%)
Speed selection 3 discrete programmable speeds.
Direction of rotation CCW, CW, reversible
Reverse speed Timed reverse programmable options.
Motor protection Electronically / Thermally Protected
Ground protection Double Insulation
Insulation class Class B
Bearing 608 sealed ball bearings
Approvals UL / TÜV / CE / RCM / CCC / ATEX*
Ingress protection IP65 / IP67*
*Option on request: Please discuss with our representative.
